TA 133 Mitre Saw
| Brand | Haffner |
|---|
- For Aluminum and PVC profile cutting
- Pneumatic sawing feed from below with 420mm diameter saw blade
- The saw blade feed speed can be adjusted via the pneumatic control
- Wide angle range from 22.5° to 112.5° with special location points at 45°, 90° & 135°
- Vertical pneumatic clamps ensure optimum profile fixing
- Two hand safety operation
- The 420mm saw blade enables to cut wide profiles as well as multiple profiles at the same time.
- Power supply: 400V, 3ph, 50-60 Hz
- Power output: 2.2 kW
- Saw Blade Speed: 2,800 rpm
- Saw blade Diameter: 420mm
- Air pressure: 6-8 bar
- Air consumption: 100 lt/min
- Maximum profile length: 3,000mm

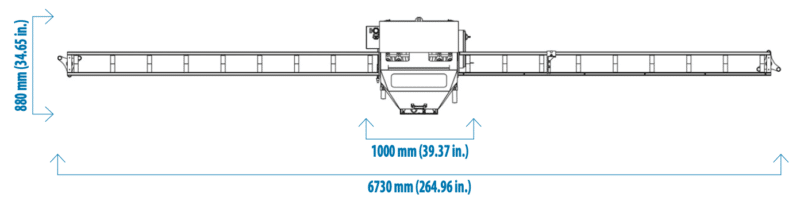

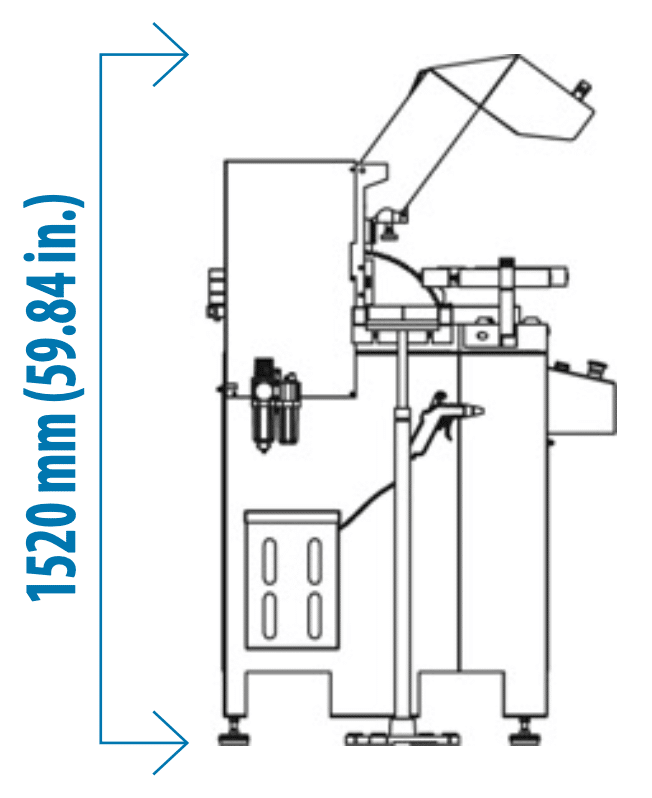

- Machine height: 1,250 mm
- Machine length: 1,000 mm (+6,730 mm)
- Machine width: 880 mm
- Machine weight: 225kg
TK-O60 Support conveyor system (3m left side or 3m right side)
TK-061 3m Right hand conveyor & measuring stop
TK-062 3m Left hand conveyor & measuring stop
MS-300 Automatic digital length measuring system and 3m conveyor
AS-021 Cooling system to cut aluminum profiles
AH-041 Hydro-pneumatic system for aluminum profiles
