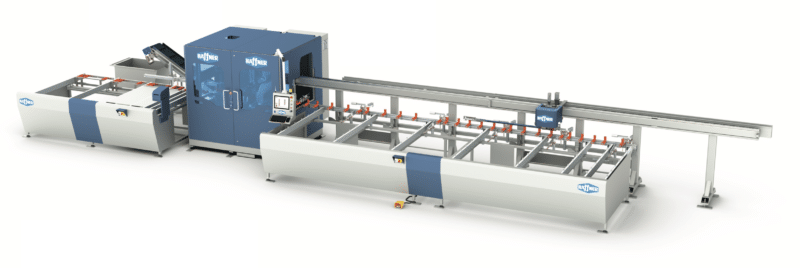

AL 220/80 Aluminium Machining Centre
| Brand | Haffner |
|---|
- All sawing, milling, drilling and marking operations on aluminium profiles are gathered in one machine controlled by a computer
- Automatic oil dispenser
- Stacking of 7 profiles (max 6.5m length) – profile width dependent
- Servo driven automatic cutting of all angles between 45o and 135o
- Pop up roller to avoid profile marking during transportation
- Heavy duty routing motor for long life operation
- Able to work in high speed and precision thanks to 9 axis controlled by servo motors
- Automatic conveyor belt system to transport scrap profile to the waste container
- Opens barrel, mirror and handle holes at door profiles simultaneously to increase the production speed by using 1 extra servo motor
- Able to perform all operations precisely by the 12 tools on the milling group
- 15” touch screen monitor
- Industrial PC and Windows 10 operating system, which works between 0oC and 55oc without the need for a fan
- Ability to work with data from different window production software ensuring minimum wastage
- All errors can be seen on the screen with interface programme developed by Murat Machine Software Development Department
- Problem identification, solution and servicing by means of remote connections
- Data transfer is available via network and connection or USB storage
- Ability to back-up data on internal storage unit
- With shift monitoring system, all operations can be controlled daily, weekly, monthly and annually
- Central lubrication system to ease the machine maintenance
- Automatic horizontal-vertical positionable gripper
- Able to perform opening, drilling and milling operations of angled water drainage channel
- Operating system takes maximum safety measures against virus spreading and user errors, by cleaning unnecessary processes of last log in, automatically at every opening and closing of the machine
- Power supply: 400V, 3ph, 50-60Hz
- Total power output: 20kW, 32A
- Spindle motor power: 2.2kW
- Spindle speed: 1800rpm
- Saw blade motor power: 3kW

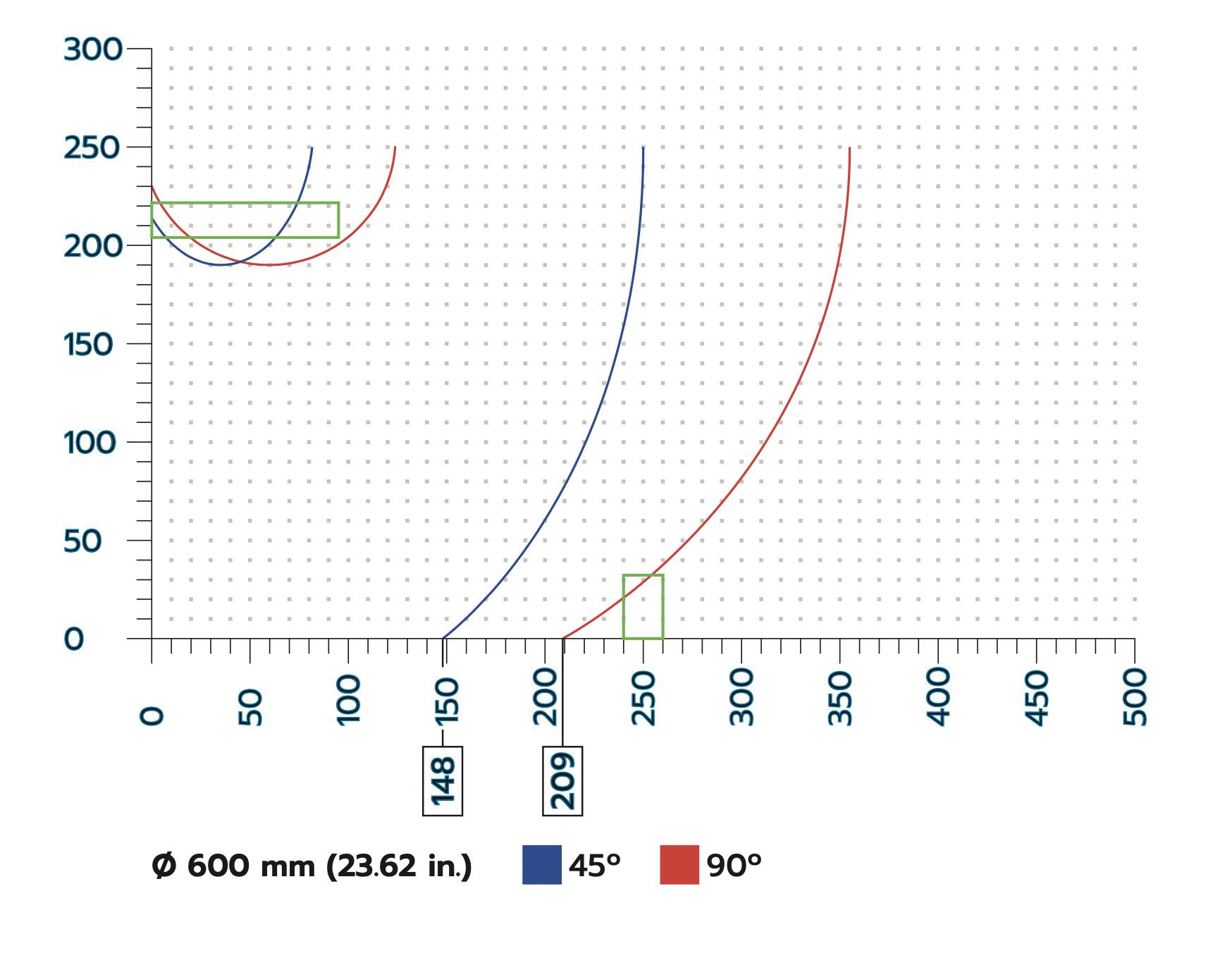

- Saw blade diameter 600mm
- Saw blade speed: 2800rpm
- Air pressure: 6-8 bar
- Air consumption 750 l/min
- Maximum raw profile length 7,000mm
- Minimum raw profile length 1,000mm
- Maximum profile length: 4,000mm
- Minimum profile length at 90o: 350mm
- Maximum profile milling height: 180mm
- Maximum profile milling width: 210mm
- Maximum profile cutting height: 180mm
- Minimum profile cutting height: 30mm
- Maximum profile cutting width at 90o: 210mm

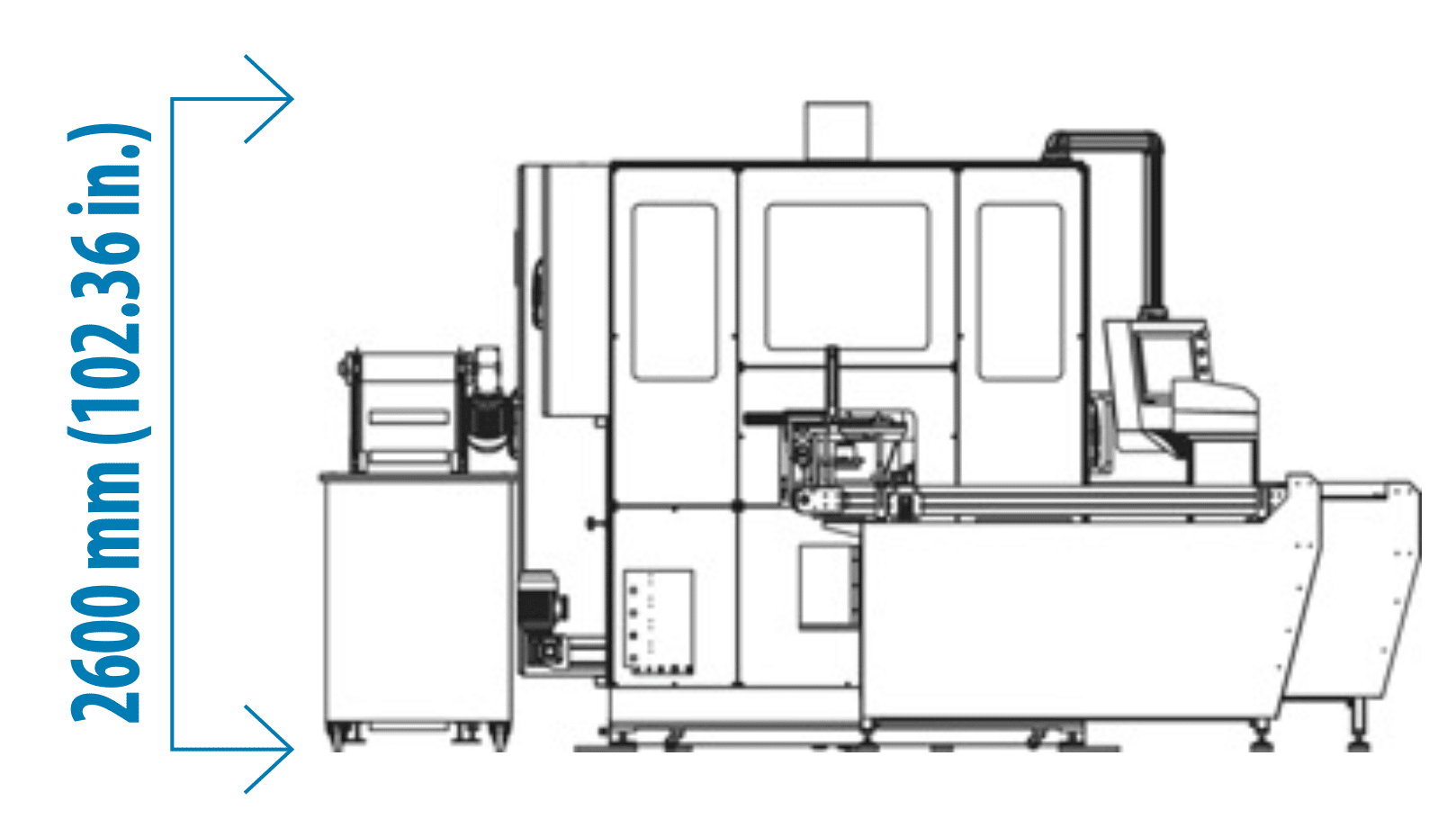

- Machine height: 2,600mm

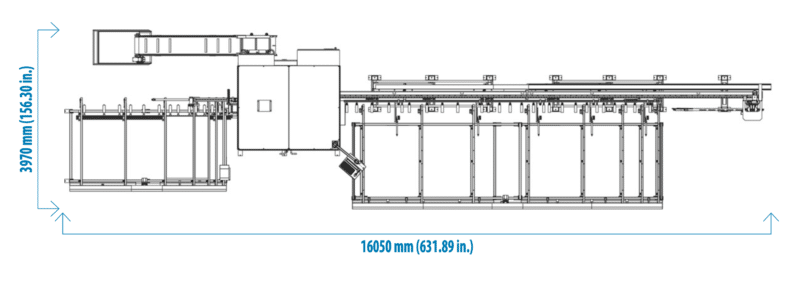

- Machine length: 16,050mm
- Machine width: 3,970mm
- Machine weight: 6,000kg
Al 001 – Camprox Sotware Programme
AL002 – Screw-driving Unit
Servo controlled 3 axis end milling unit
