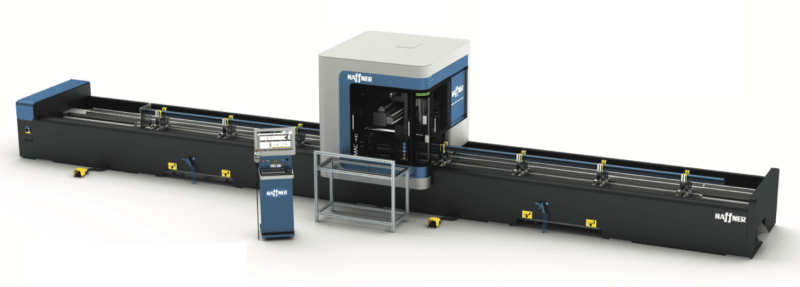

MAC 440 Aluminium Machining Centre
| Brand | Haffner |
|---|
- PC controlled 4-axis interpolated CNC machine designed for milling, drilling, cutting and tapping
- 4 Axis system controlled by high precision servo motors
- 4,100mm & 8,500mm optional processing lengths

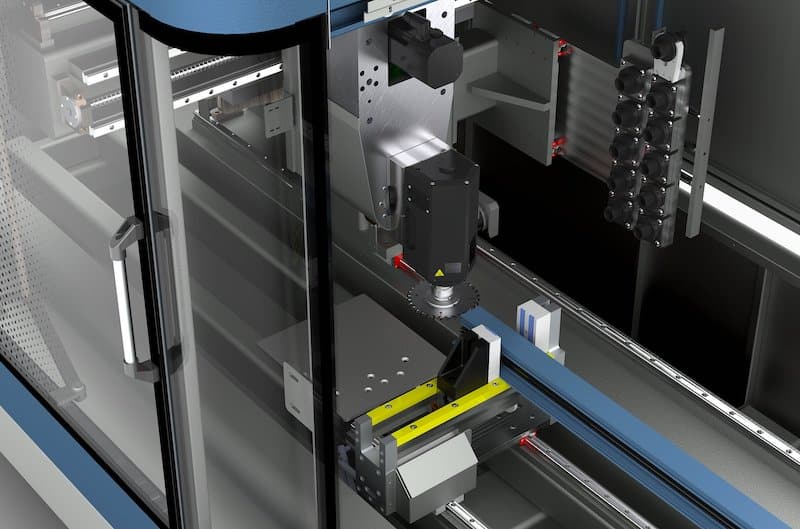

- Water cooled electric spindle with HSK F63 tool connection suitable for material removal processes during milling and drilling operations
- Automatic clamp recognition and clamp positioning

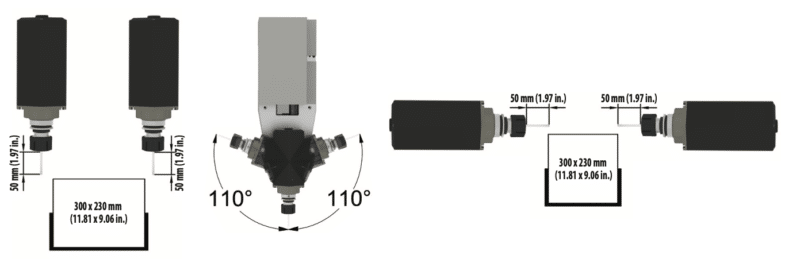

- A-Axis processing between -110o to +110o
- Windows 10 operating system
- 21” led monitor
- Handheld operator terminal
- Thread cutting, flow drill and countersink operations
- Easy to perform operations on the profile with CAD-CAM program
- Central lubrication system to ease machine maintenance
4,100mm Maximum machinable length
Power supply -400V, 50-60Hz
Travers Path X-Axis – 4,600mm, Vmax 120m/min
Traverse Path Y-Axis – 930mm, Vmax 60m/min
Traverse Path Z-Axis – 625mm, Vmax 60m/min
Maximum Machinable length – 4,100mm
Tool magazine – 10 + 2
Maximum milling blade diameter – 150mm
Number of standard vices – 4pcs
Vices positioning – Automatic
Number of stop references – 2
Spindle motor power – 7Kw – 11Kw
Adjustable electro spindle motor – 0 – 2400rpm
Tool holder – HSK F63
Operating pressure – 7 bar
Total installed power – 12Kw

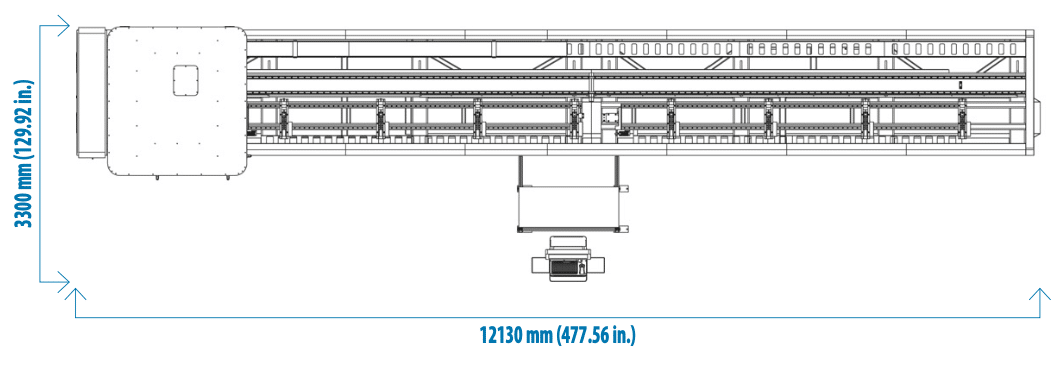

Machine height – 2,300mm
Machine length – 12,130mm
Machine width – 3,300mm
Machine weight – 4,920kg
Maximum processing width – 650mm
8,500mm Maximum machinable length
Power supply -400V, 50-60Hz
Travers Path X-Axis – 9,350mm, Vmax 120m/min
Traverse Path Y-Axis – 930mm, Vmax 60m/min
Traverse Path Z-Axis – 625mm, Vmax 60m/min
Maximum Machinable length – 8,500mm
Tool magazine – 10 + 2
Maximum milling blade diameter – 150mm
Number of standard vices – 8pcs
Vices positioning – Automatic
Number of stop references – 1
Spindle motor power – 7Kw – 11Kw
Adjustable electro spindle motor – 0 – 2400rpm
Tool holder – HSK F63
Operating pressure – 7 bar
Total installed power – 12Kw
Machine height – 3,402mm
Machine length – 12,130mm
Machine width – 3,300mm
Machine weight – 5,950kg
Maximum processing width – 650mm
Barcode reader (AK002)
Water cooled 11kW routing spindle
