SC 114 Profile Cutting Centre
| Brand | Haffner |
|---|
- Automatic and fast cutting of PVC profiles at different lengths
- Loading of 10 profiles (max. 6.5m length)
- Automatically feeds the profiles from the loading magazine, then cuts at desired lengths
- Able to cut wide profiles easily with the saw in 500mm diameter
- Servo driven automatic cutting of all angles between 30o and 150o
- Transfers the cut parts to the output station automatically
- Adjustable saw feed speed
- Remote network connection or data transfer from USB
- Able to provide service with remote connection method and trouble shooting by connecting to whole automation system
- 15” touch screen
- High performance industrial PC having Windows 10 embedded operating system and working between 0oC and 5500
- Able to carry waste parts to the waste container with automatic conveyor belt system
- Full integration with window-door production software programs
- Able to see all error messages on the screen with interface program
- Barcode printer
- Dust and chip extraction system
Capacity
- Min. 2,600 meters/8 hours
- Max 2,800 meters/8 hours
- Power supply: 415V, 3ph, 50-60Hz
- Total power output: 10 kW, 22A
- Spindle speed: 2,800rpm
- Saw diameter: 500mm
- Max raw profile length: 6,500mm
- Max profile cutting length: 3,500mm
- Min profile cutting length: 400mm
- Air pressure: 6-8bar
- Air consumption: 225 l/min
- Machine height: 2,350mm

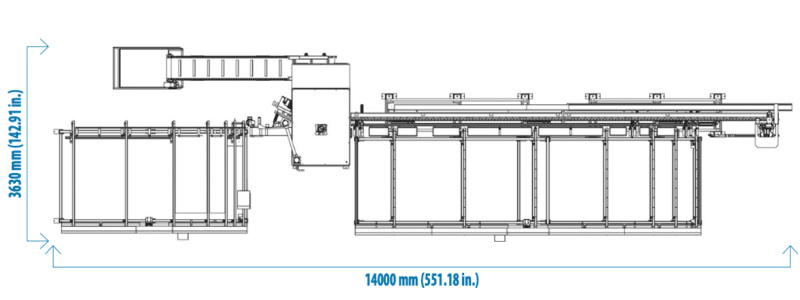

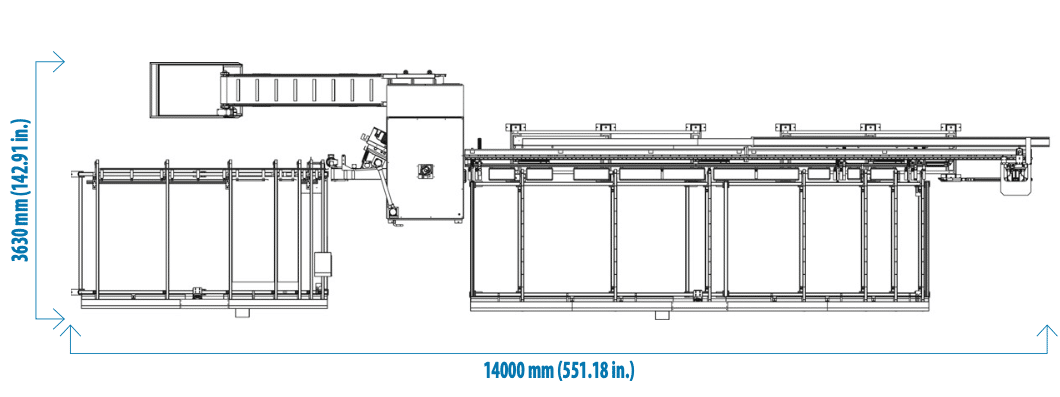

- Machine length: 14,000mm
- Machine width: 3,630mm
- Machine weight: 3,900kg
End milling unit for two different profile cross sections
