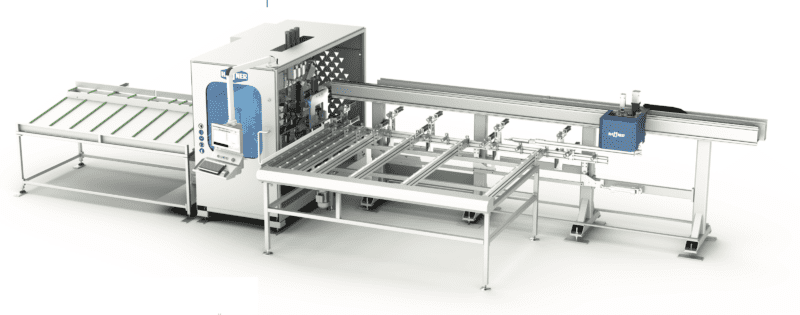

NR 210 PVCu Profile Machining Centre
| Brand | Haffner |
|---|
- Routing, reinforcement steel screwing, drilling, milling, marking operations on PVC profiles are gathered in one machine controlled by a computer
- Stacking of 10 cut to size profiles with reinforcement steel (max 3.5m length)
- The barcode reader enables arranging the sequence of the profile and processes
- Drain slot routing, drilling and routing at variable angles
- Automatic screwing of reinforcement steels
- Drilling of fixation, triple handle holes and hinge holes together with the reinforcement steel
- 19” LED monitor
- High performance industrial PC with Windows 10 operating system, which works between 0oC and 55oC
- All error messages can be monitored from the screen
- By online connection to the entire system, remote detection of malfunctions and maintenance is available
- Data transfer is available via network connection or USB interface.
- Full integration with various window and door production software
- Central lubrication system eases maintenance
- Power supply: 400V, 3ph, 50-60Hz
- Total power output: 9kW, 24A

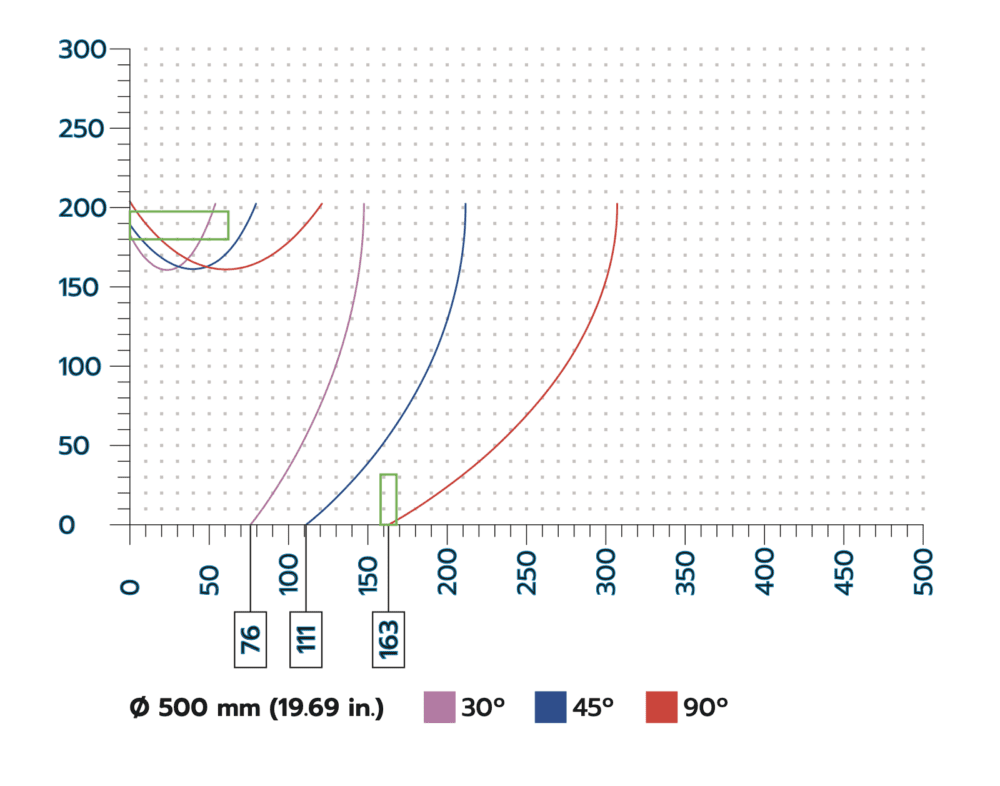

- Saw diameter: 500mm
- Max profile height: 140mm
- Min profile height: 35mm
- Max profile width: 130mm
- Min profile width: 35mm
- Max profile processing length: 3,500mm
- Min profile processing length: 330mm
- Air pressure: 6-8bar
- Air consumption: 420 l/min

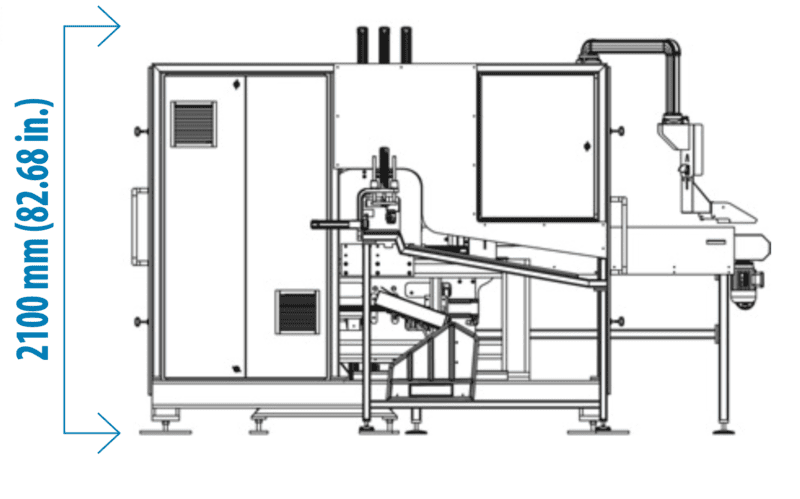

- Machine height: 2,100mm

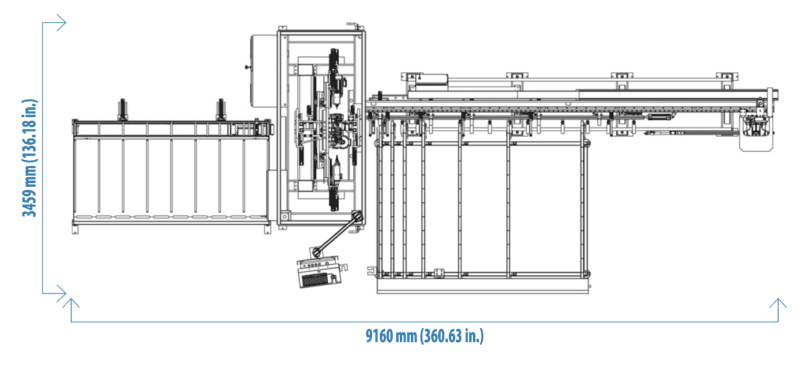

- Machine length: 9,160mm
- Machine width: 3,459mm
- Machine weight: 4,700kg
