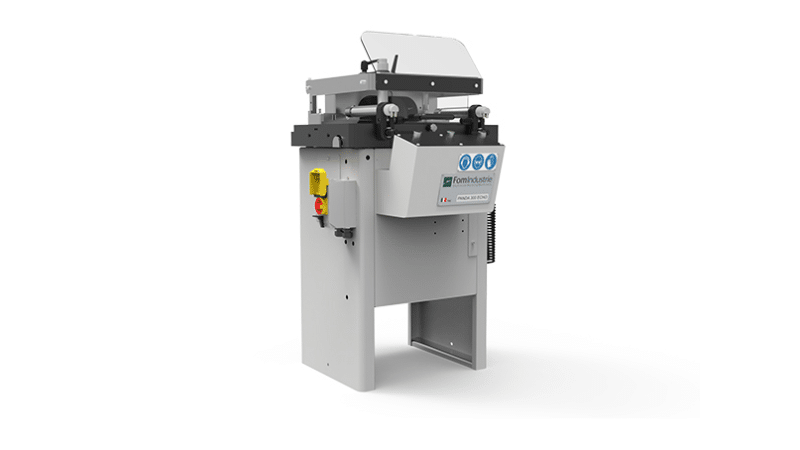

Panda 300 Echo Pneumatic Sawing Machine
| Brand | Fom Industrie |
|---|
The Panda 300 Echo is a pneumatic sawing machine with 300mm up-feed blade and manual positioning of vertical axis
Two options:
with manual blade feed
with pneumatic blade feed
- Oleo-pneumatic saw blade advance (adjustable blade exit speed – quick return) or manual, depending on version
- Blade turning 0° RH/LH
- Set up for the extraction of chips and fumes
- Motor transmission by belt
- Machine and turntable structure in stabilized cast iron
- Turntable rotation on bearings and rollers that guarantees maximum long term precision
- Working pressure: 7 bar
- Saw blade motor, three phase 2 HP (1.47 kW) – 2800rpm. – eurovoltage 230/400V– 50Hz; 275/480V – 60 Hz
- Saw blade holding spindle Ø 32 mm
- Work cycle air consumption 4 NL for automatic blade rise version, 2.1 NL for manual blade rise version
- Spray mist blade lubrication system
