Blitz 50/55/60 Double Head Sawing Machine
| Brand | Fom Industrie |
|---|
A double-head sawing machine with motorized movement of the mobile head and electronic control of the head tilting
Blitz 50 – 5 metre cutting facility
Blitz 50 – 6.6 metre cutting facility
Blitz 55 – 5 metre cutting facility
Blitz 55 – 6.6 metre cutting facility
Blitz 60 – 5 metre cutting facility
Blitz 60 – 6.6 metre cutting facility
- First head fixed, second head mobile with automatic positioning. Positioning carried out by servomotor and reducer with centesimal precision
- Maximum cutting distance between the two heads: 5 – 6.6m depending on the version supplied (can be increased with dedicated software, optional)
- Cutting precision ± 0.15mm
- Motor-driven cutting head tilted by means of a recirculating ball screw and nut offering high precision, repeatability and reliability

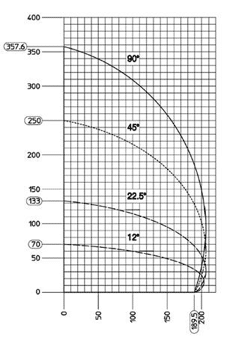

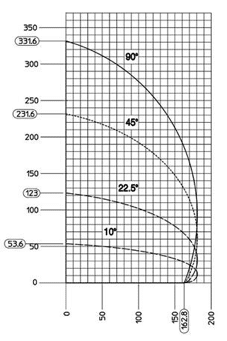

- Cutting angles vary according to the machine model, with electronic control of all graduations:
– from 10° to 135° Blitz 50
– from 12° to 135° Blitz 55
– from 20° to 135° Blitz 60 - ±0,05° precision and repeatability
- 2 no. tungsten carbide saw blades Ø 500 (Blitz 50) Ø 550 (Blitz 55) Ø 600 (Blitz 60) mm
- Oleo-pneumatic blade exit speed control (adjustable blade exit speed – rapid retraction)
- Cutting zone guards
- Machine state indicator LEDs
- 4 no. horizontal vices which have a patented push system with a vertical component to guarantee contact with the machine horizontal table
- 2 no. vertical vices on internal side of the blade, automatically excludible for cuts with internal angles between 90° and 135°
- Movable head roller table 2.5m
- Minimum quantity lubrication (MQL) with pure oil
- Direct motor to blade transmission
- Blade motors 2.2 kW – 2,800 rpm
- Electric panel separate from pneumatic panel in lateral position
- Set-up for the installation of a chips and fumes extraction system
- Horizontal profile support tables in ground hardened steel and vertical in stainless steel
- Set up for the installation of a central motor-driven conveyor belt for collecting waste material and chips including inclined end
- Flashing lights to warn when the machine is in operation
- Electric brake to stop the blade in less than 10 seconds
- Rapid tap for the easy connection and disconnection of the vertical vices
- Pneumatic circuit mounted directly on the heads for increased speed and ease of calibrating the pneumatic parts regardless of machine length
