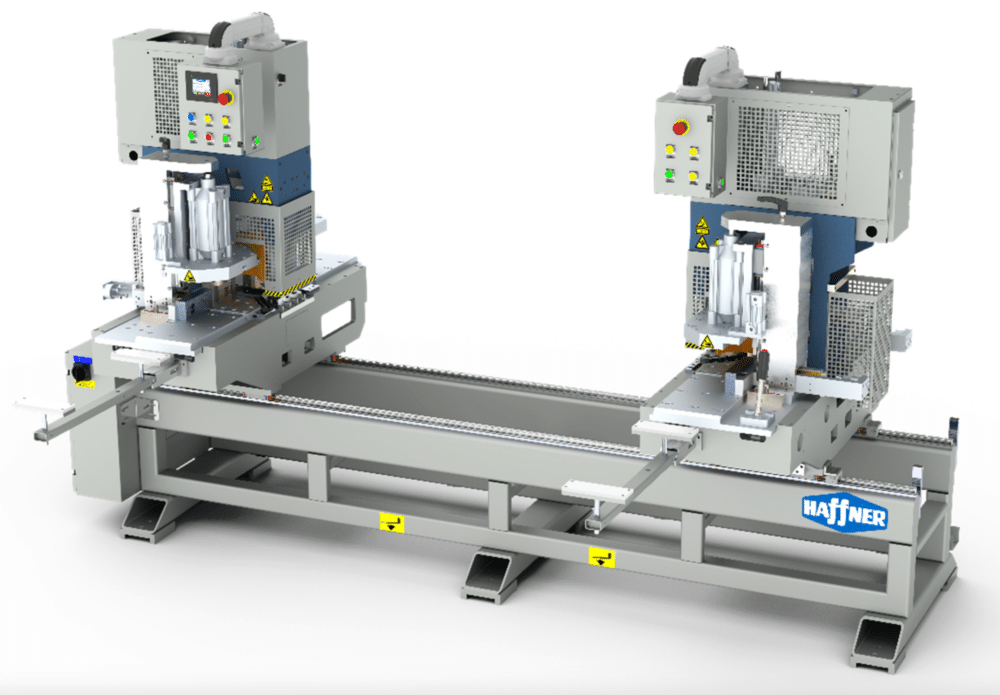

SMR-H – Two Head H-Welding Machine
| Brand | Haffner |
|---|

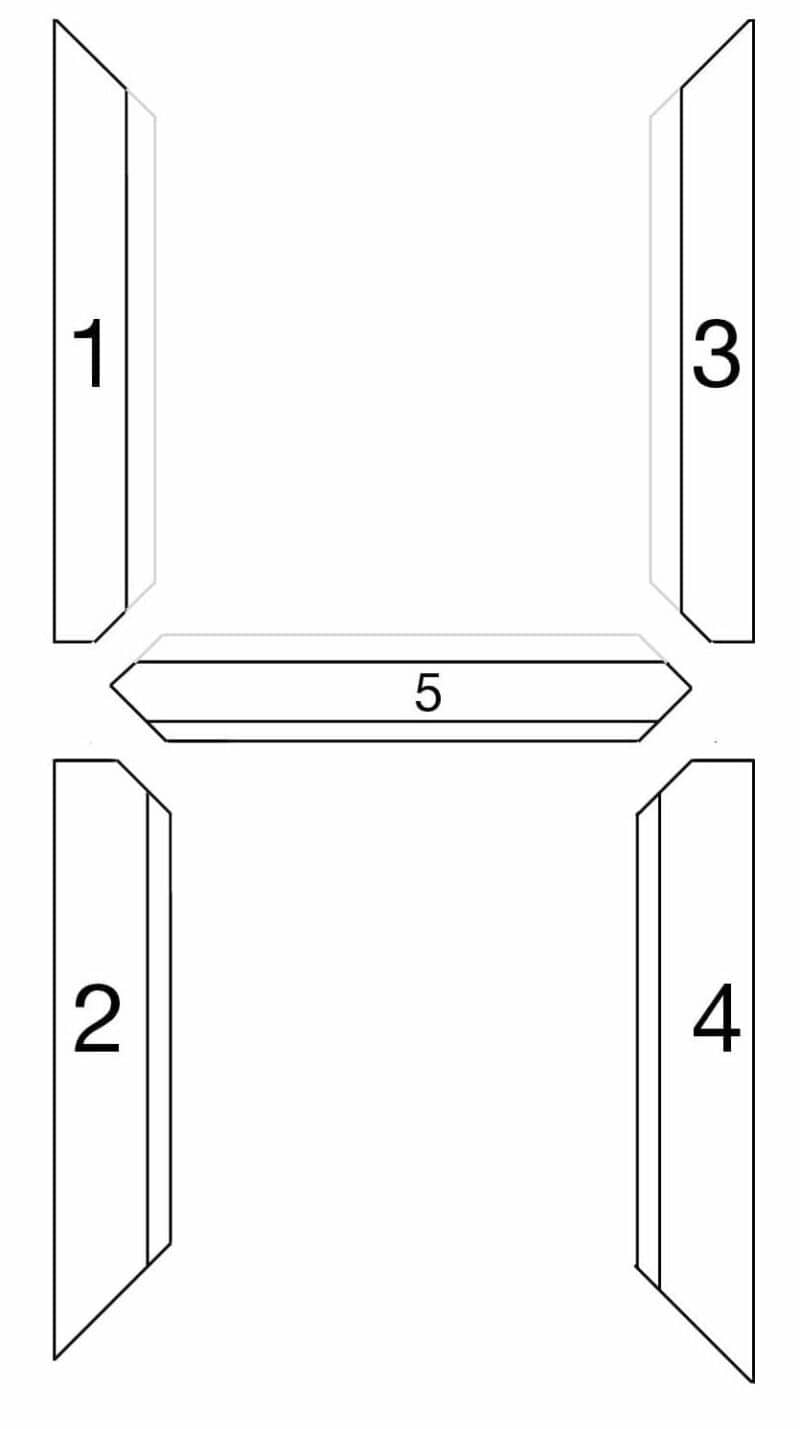

- Welds 5 pieces in one operation
- Welds two reverse butts and one transom in a single operation
- Cleans top and bottom reverse butt after welding with flat knives
- Two minutes weld cycle
- Reduced weld time
- Increased accuracy
- 4 x faster than traditional methods
- No need for pre-welding and cleaning
- Movable head is locked in position by pneumatic braking
- All operations can be controlled automatically
- Two hand safety operation (fully guarded)
- Power supply: 415V, 3ph, 50-60Hz
- Power output: 7.0kW 20A
- Maximum welding length: 3,400mm
- Minimum welding length: 400mm
- Maximum profile width: 120mm
- Maximum profile height: 150mm
- Air pressure: 6-8bar
- Machine height: 1,995mm
- Machine length: 3,440mm
- Machine width: 2,050mm
- Machine weight: 2,100kg
