KB 512 Single Head Welding Machine
- Welds PVC profiles with single operation
- Ability to weld at variable angles (45° – 180°)
- Welds both coloured and white profiles (0.2 mm welding seam restriction)
- All operations can be controlled by the digital touchscreen display
- Melting & welding times are digitally adjusted
- Profiles are clamped simultaneously by using a foot pedal
- Ability to clean the heater plates easily
- Long lasting Teflon usage and easy change by special Teflon system
- Two hand safety operation
- Fully guarded
- Practical welding fixture changing system
- Power supply: 230V, 1ph, 50-60Hz
- Total power output: 1.5kW
- Maximum profile width: 140mm (for 90° welding)
- Maximum profile height: 175mm
- Minimum profile height 40mm
- Air pressure: 6-8bar

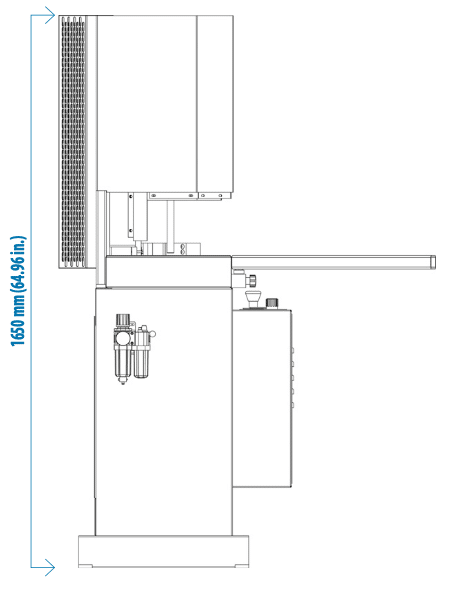

- Machine height: 1,650mm
- Machine length: 780mm
- Machine width: 1115mm
- Machine Weight: 135kg
