FA 533 Automatic End Milling Machine
| Brand | Haffner |
|---|
- For end milling of transom in PVC and Aluminium profiles
- Automatic feed of the milling unit
- Ability to rout at varying angles up to 45° left and 30° right
- Vertical pneumatic profile clamping system enables optimum work piece fixing
- Positioning of the tools with pneumatic feed cylinder
- Fully guarded
- Without changing the cutter set, two different series of transom profiles can be processed
- The saw blade feed speed can be adjusted
- Power supply 230V, 1ph, 50-60Hz
- Power output 1.1 kW
- Maximum cutter diameter 160mm
- Spindle speed 2,800rpm
- Maximum routing height 90mm
- Maximum routing depth 30mm
- Maximum profile width 120mm
- Maximum profile height 90mm
- Air pressure 6-8bar

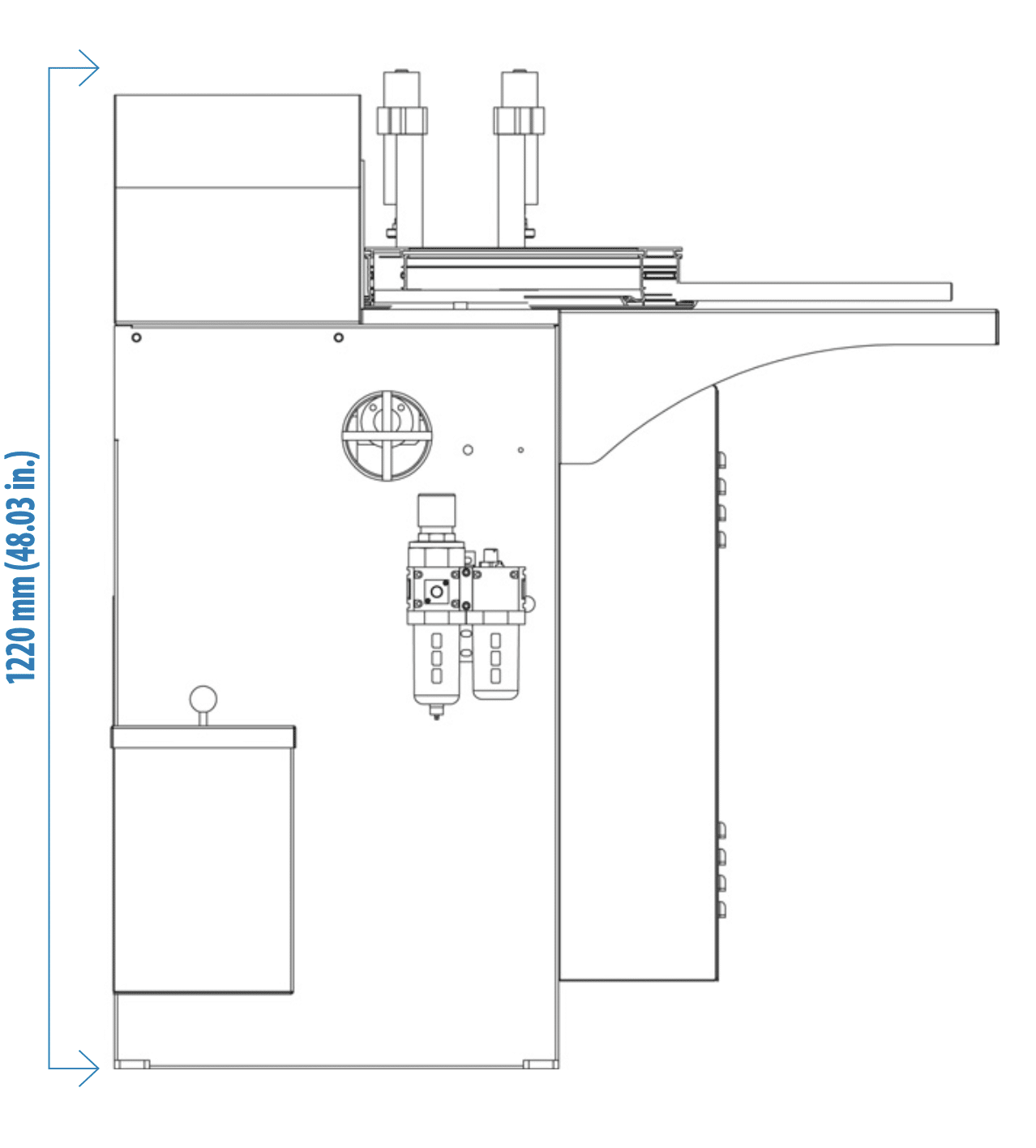

- Machine Height 1,220mm

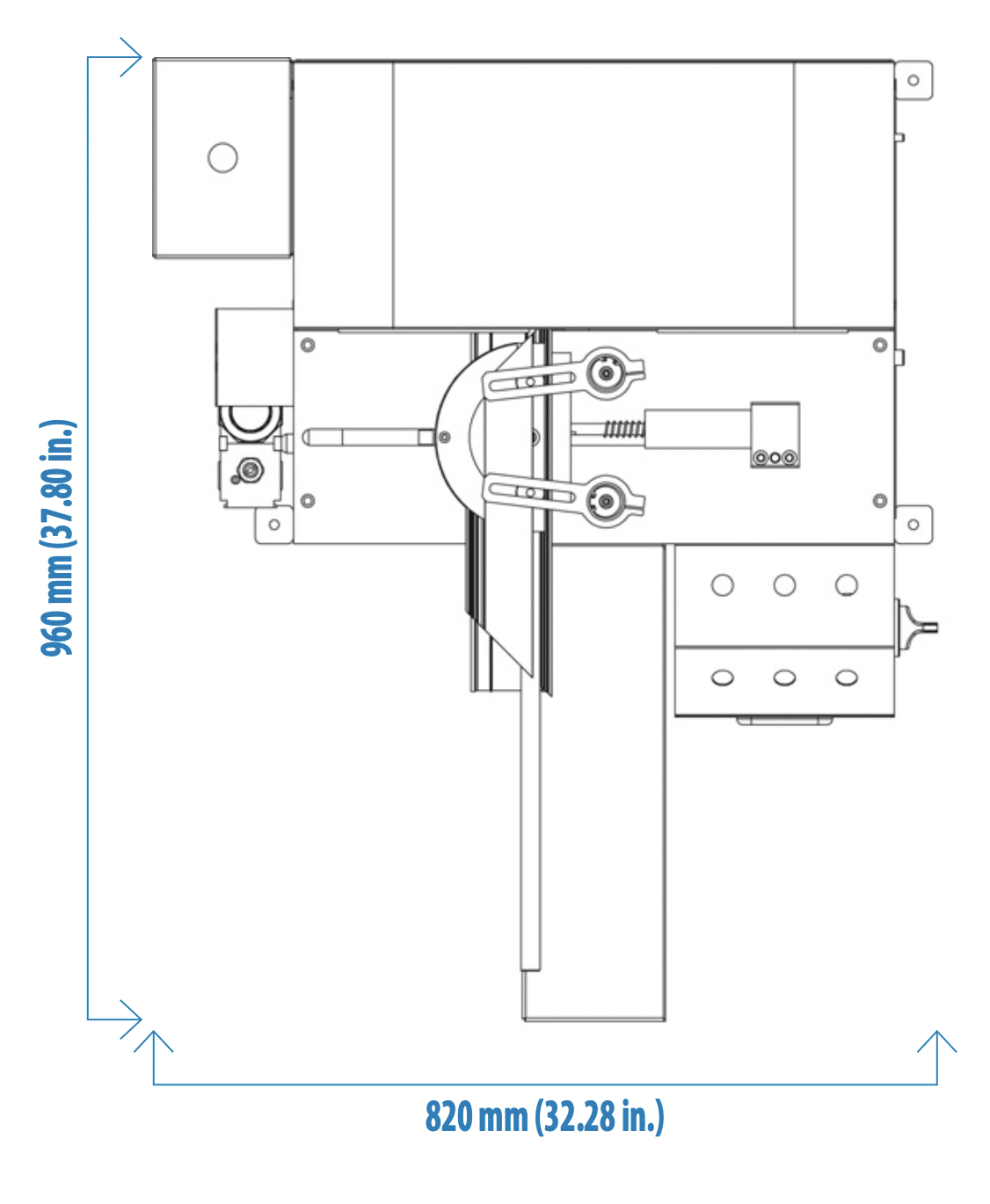

- Machine Length 960mm
- Machine Width 820mm
- Machine Weight 75kg
AS-021 Cooling system for aluminium profiles
AH-041 Hydro-pneumatic system for aluminium profiles
