FA 154 Automatic End Milling Machine
| Brand | Haffner |
|---|
- For end milling of transom in PVC and Aluminium profiles
- Automatic feed of the milling unit
- Fully guarded
- Ability to rout at varying angles up to 45° left and 30° right
- Vertical pneumatic profile clamping system enables optimum work piece fixing
- Power supply: 230V, 3ph, 50-60Hz
- Power output: 1.1kW
- Max cutter diameter: 160mm
- Spindle speed: 2,800rpm
- Max routing height: 90mm
- Max routing depth: 30mm
- Max profile width: 120mm
- Max profile height: 90mm
- Air pressure: 6-8bar

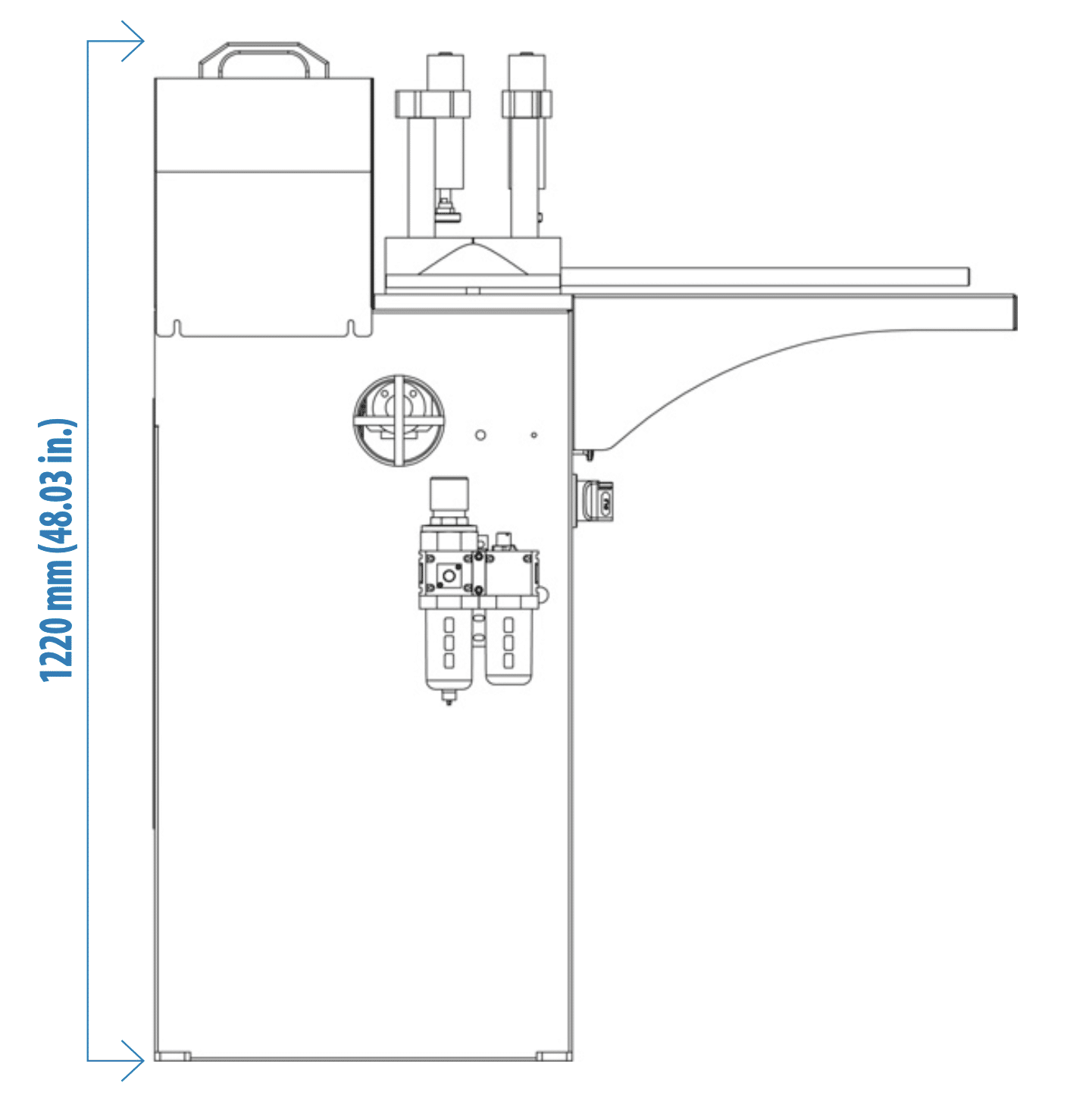

- Machine height: 1,220mm

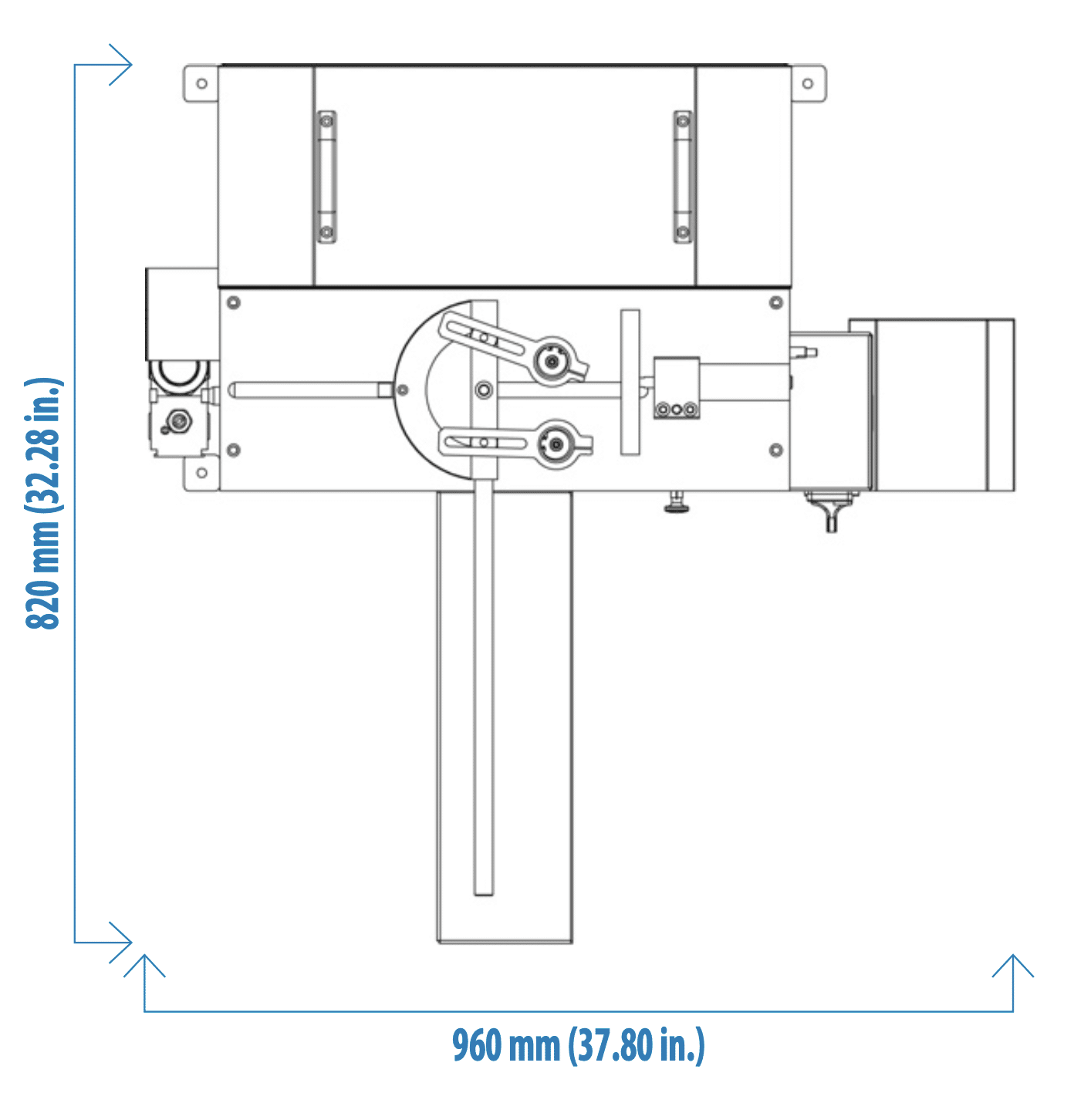

- Machine length: 960mm
- Machine width: 820mm
- Machine weight: 75kg
AS-021 Cooling system for aluminium profiles
AH-041 Hydro-pneumatic system for aluminium profiles
