CN 784 CNC Four Corners Cleaning Machine
| Brand | Haffner |
|---|
- Four corners of a sash or frame can be cleaned simultaneously in a shorter time with high accuracy and quality, by the use of a servo controlled 18 axes automation system
- With the help of a mobile operator terminal, the machine can be programmed while making the adjustments
- The user friendly interface allows easy profile data input
- Unlimited capacity to store profile data
- 12 specially designed tools on each head ensures ultimate results in corner cleaning
- Different surface knives clean white and coloured profiles
- Standard equipped with surface knives, inner corner knives, drills and monobloc frame knives
- High performance industrial PC, with Windows 10 operating system, which works between 0°C and 55°C without the need for a fan
- User friendly unique interface enables programmes to be created and edited easily, by use of .dxf drawings of profiles on the screen
- 15” touchscreen monitor
- All error messages can be monitored from the screen
- By online connection to the entire system, remote connections of malfunctions & maintenance is available
- The software cleans unnecessary processes and sustains maximum security against virus attacks and user faults at every system start up and shut down
- Data transfer is available via network connection or USB interface
- An infinite number of profile dimensions and properties can be stored
- Able to back-up daily data on an internal storage device
- With shift monitoring system, all operations can be controlled daily, weekly, monthly or annually
- Central lubrication system eases maintenance
- The rails are coated to prevent corrosion
- Power supply: 400V, 3 ph, 50-60Hz
- Total power output: 22kW, 63A
- Saw diameter: 250mm
- Max profile height: 120mm
- Min profile height: 30mm
- Max profile width: 120mm
- Min profile width: 30mm
- Max frame dimension: 3,000mm
- Min frame dimension: 400mm
- Air pressure: 6-8bar
- Air consumption: 450 l/min

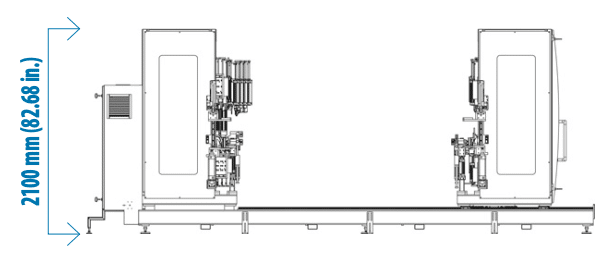

- Machine height: 2,100mm

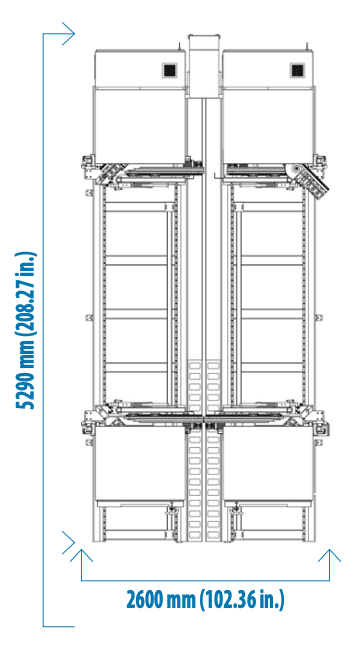

- Machine length: 5,200mm
- Machine width: 2,600mm
- Machine weight: 2,750kg
