CA 747 Corner Cleaning Machine
| Brand | Haffner |
|---|
- Cleans the welding seam on lower and upper surfaces of welded profiles with grooving knives

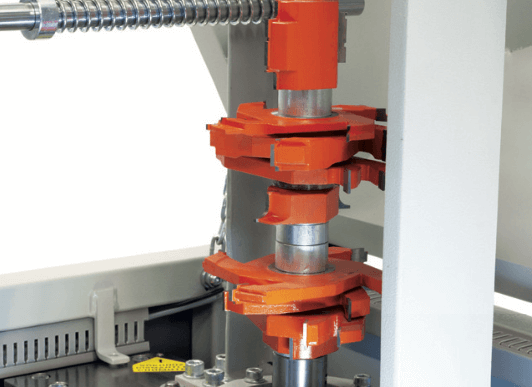

- Mills the welding seam at the outer corners of the welded profiles with 4 different sets of disk cutters
- Fully automatic PLC operating system
- Automatic identification and cutter set positioning of frame and sash profiles
- All operations are controlled by the digital touch screen display
- Four cutter locations for individually assembled sets of cutters
- Automatic system for pushing the welded profiles to the back fence to provide accurate centering

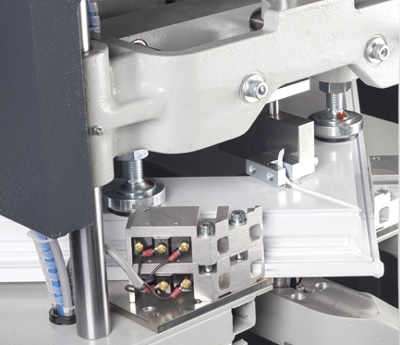

- The profiles are fixed by horizontal and vertical clamps ensure optimum work piece fixing
- Standard equipped with profile support arms
- Fully guarded
- Power supply: 230v, 1ph, 50-60Hz
- Total power output: 1.1kW
- Spindle speed: 2,800rpm
- Saw diameter: 160mm
- Max profile width: 120mm
- Min profile width: 30mm
- Max profile height 170mm
- Min profile height 40mm
- Air pressure: 6-8bar
- Air consumption: 75 l/min
- Machine height: 1,450mm
- Machine length: 780mm (2,140mm including arms)
- Machine width: 1,130mm (1,765mm including arms)
- Machine weight: 250kg
