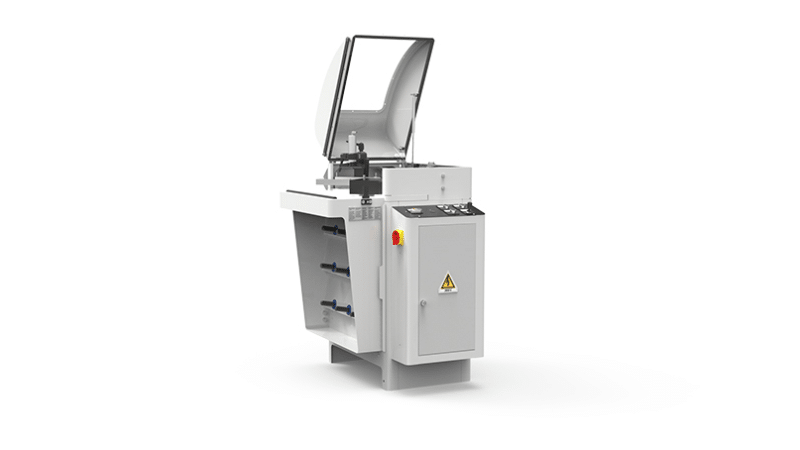

Mistral 26/26A End Milling Machine
| Brand | Fom Industrie |
|---|
Variable angle end milling machine
Two options:
Mistral 26 – Manual
Mistral 26A – Pneumatic
- End milling angle 45° RH, 90°, 45° LH and intermediate angles
- Milling tool unit rotation speed 7000rpm
- Max milling tool size Ø 175mm
- Manual feed of the milling tool unit (MISTRAL 26)
- Automatic feed with rapid approach controlled by milling tool unit photocell (MISTRAL 26A)
- Quick change milling tool unit
- Milling tool unit balancing system
- Milling units magazine with 9 slots
- Spray mist blade lubrication system
- Carriage stroke: X max = 350mm
- Milling depth: Y max = 65.5mm
- Maximum milling unit height: 125mm
- Working capacity: see attached diagram
- Patented system that allows profile positioning without the need for geometrics
- Work table height 900mm
- Non-abrasive work table that will not damage painted profiles
- Set up for the extraction of chips and fumes
- Integral safety guards around work table with opening lock
- Double working pressure servo-controlled in low pressure
