HP 114 Corner Crimping Machine
| Brand | Haffner |
|---|
- Joins the corners of aluminium profiles by crimping the corner of the profile into the aluminium cleat
- Hydraulic operating system, sustains high-pressure power

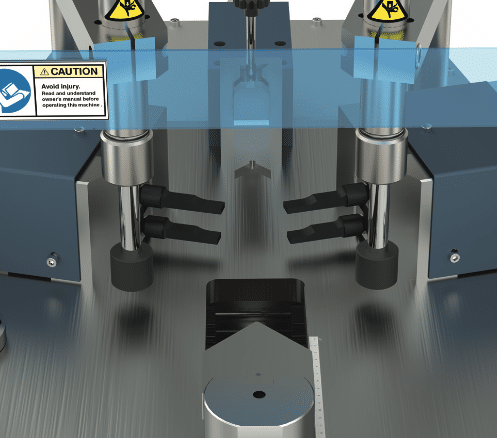

- Two vertical clamps work with hydraulic pressure for maximum profile fixation
- Ability to work with all types of profiles
- The crimping blades can be adjusted easily with a magnetic fixation system
- The support is lowered hydraulically for easy loading and off-loading of work pieces
- A magnetic support block enables easy adjustment
- Step by step control of the operation using foot pedal
- Power supply: 400V, 3 ph, 50-60Hz
- Total power output: 3.0kW
- Hydraulic pressure: 150bar
- Pressing power: 6500kgf
- Min profile height: 15mm
- Max profile height: 90mm
- Max profile width: 140mm

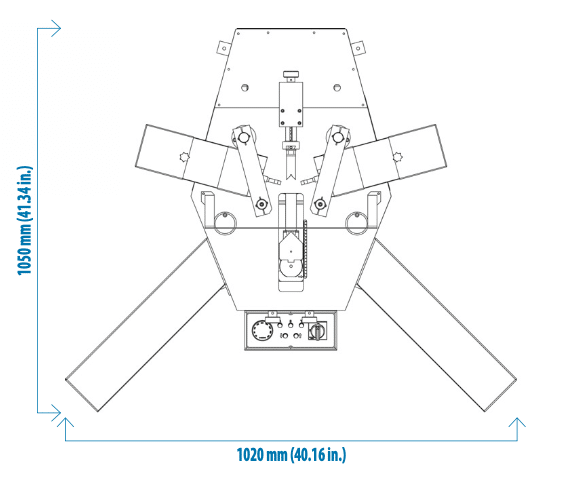

- Machine height: 1300mm
- Machine length: 1020mm
- Machine width 1050mm
- Machine weight 300kg
