FA 539 Automatic Heritage Double Sided End Milling Machine
| Brand | Haffner |
|---|
- Pneumatic foot pedal clamping
- Automatic end milling feed unit
- Left and right end milling units for clockwise and anti-clockwise rotation
- Vertical and horizontal pneumatic profile clamping system
- Profile specific contour blocks
- Two hand safety control system
- 45o milling operation
- Mills 2 pieces in one operation
- Power supply: 400V, 3ph, 50-60Hz
- Power output: 5.5kW
- Spindle speed 2800rpm
- Air pressure: 6-8 bar
- Air consumption: 50 l/m
- Maximum routing depth 30mm
- Maximum routing height 90mm
- Maximum profile height 90mm
- Maximum profile width 140mm
- Machine weight: 530kg

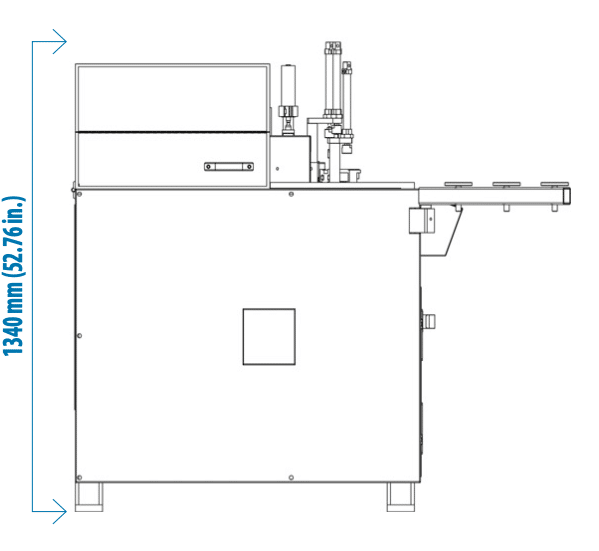

- Machine height: 1,340mm
- Machine width: 1,470mm
- Machine length: 2,340mm
