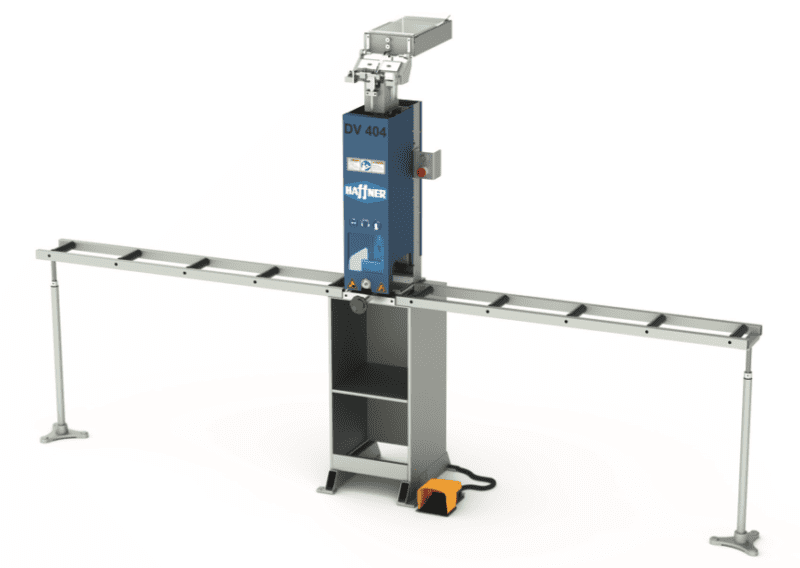

DV 404 Reinforcement Profile Screwing Machine
| Brand | Haffner |
|---|
- For single profile processing
- Automatic screwing of the reinforcement profile by means of foot pedal switch
- Adjustable according to different profile cross sections
- Pneumatic clamping during processing
- Automatic screw feed
- Automatic depth stop system independent from profile height
- Standard equipped with profile support conveyors left and right
- Max profile section dimensions: 110mm x 80mm
- Min profile width: 40mm
- Air pressure: 6-8bar
- Air consumption: 15 l/min

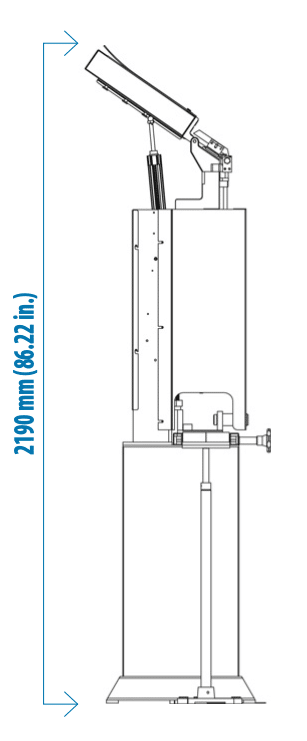

- Machine height: 2,190mm
- Machine length: 3455mm including conveyors
- Machine width: 580mm
- Machine weight: 105kg
